The working principle of high-speed oral liquid filling machine

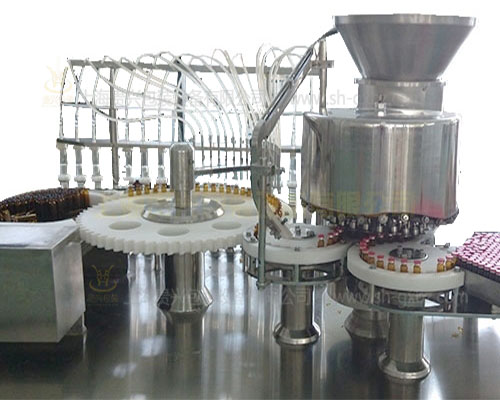

High-speed oral liquid filling machine is specially designed for new oral liquid easy pull a bottle filling equipment, the reasonable design, simple structure, convenient operation and is equipped with mechanical lack of bottle to stop priming device.
(1) transmission principle: by motor through a belt pulley will drive to reducer worm shaft, again by the worm wheel shaft through the gear, the power to stir axle and filling and rolling curtain. Filling parts, rolling curtain and the thumbwheel synchronous movement, and reached into the bottle through the bevel gear will power dial wheel device.
(2) the principle of filling part: oral liquid bottle by into bottle big dial wheel to transition the wheel, by transition thumbwheel again sent to the synchronous belt, drag the bottle by the synchronous belt with block uniform running forward, placing needle under the control of the tracking mechanism, insert the bottle, and the bottle synchronous running forward, realize tracking filling. Has a latent needle with the liquid surface, defoaming effect.
(3) for the cap system: by losing track, Richard LIDS and wear cover cover bodies. LIDS using electromagnetic spiral vibration principle, will be mixed and disorderly the lid of the good line, the directional twist way to orbit lose cover, cover institutions after wearing, pressed by hanging bottle lid cover, make the cover Dai Zheng.
(4) rolling curtain: good oral liquid bottle put the lid into the rolling wheel, modesty is open three rolling knife will be centered on the bottle, along with the wheel rotation, forward the control of the CAM down the lid, then under the action of three rolling knife in the taper sleeve, meanwhile to the rolling, rolling, leave the lid again at the same time, back to the in situ.
(5) tracking filling mechanism: by the servo motor to drive pinion and rack movement, thus promote irrigation needles do reciprocating motion. By adjusting the injection needle and the relative position of the mounting bracket, can make the accurate filling needle inserted into the bottle.
Main use: the filling machine widely used in food, cosmetic, pharmaceutical, oil and other industries, can be different filling liquid products.
